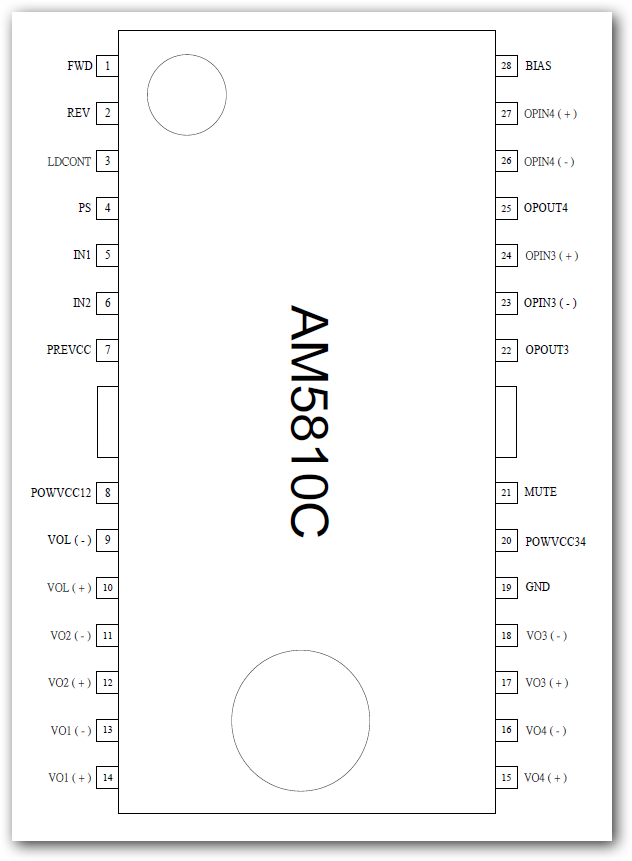

pin assignment

AM5810C AM5810C

Features

1) A power saving mode is enabled by power-save terminal.
2) Small surface mounting power package (HSOP-28)
3) Separating Vcc into Pre and Pow, can make better power efficiency
4) Thermal-shut-down circuit built in
5) Wide dynamic range <4.OV (Typ.) at PreVcc=12V, PowVcc=5V>
6) BTL driver:Input pins consist of (+) and (-), therefore various input types are available such as differential input.
7) Loading driver:
a. The output voltage is adjustable by output voltage control terminal. (Only “H” side voltage)
b. Brake circuit built in
c. Circuit protection diode built in.

Description

The AM5810C is a 5-channel BTL driver - 2 of the channels are able to drive stepping motor, and 1 channel is for reversible driver. Package material is Pb Free for purpose of environmental protection. Cu bonding wire for better conductivity.

Applications
Automotive DVD, CD players
